A Gas Furnace That Shut Down in a 1950s Glen Rock Ranch

The Burner Would Not Stay On

The homeowner noticed the furnace ignited briefly and then shut down again. That pattern left the home without dependable heat during winter, so they called us to determine whether the problem was the ignition sequence, the flame-sensing circuit, or another control issue.

This Glen Rock home is a 1950s brick ranch with the compact basement and existing duct layout common to its era. A furnace in that setting needs to complete its safety sequence before the blower distributes warm air, so repeated shutdowns called for testing rather than repeated resets.

A Fouled Sensor Was Losing the Flame Signal

Our technician observed the furnace start and confirmed that the burners lit before the system shut down. We inspected the flame-sensing component and found a fouled flame sensor. The sensor could not reliably confirm the burner flame, so the furnace control closed the gas valve as a safety response.

The finding matched the reported symptom: ignition occurred, but the furnace did not remain in its heating sequence. We also checked the surrounding connections and operating sequence so the repair addressed the cause instead of masking the shutdown with a reset.

From Ignition Test to Verified Heat

1. Reproduce the shutdown

   We ran the furnace through its normal call for heat and watched the sequence from ignition through shutdown. This confirmed that the burners lit before the control ended the cycle.

2. Inspect the flame-sensing circuit

   Our technician examined the flame sensor, its connection, and the furnace control response. The sensor surface was fouled, which explained why the control did not receive a dependable flame signal.

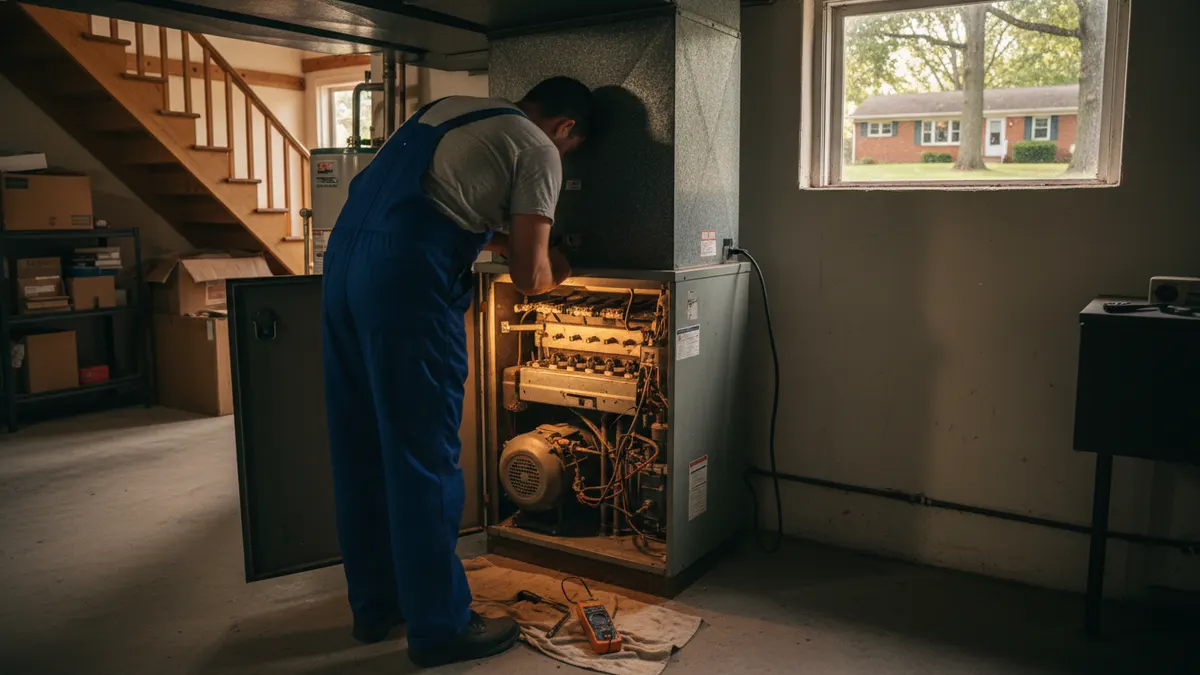

3. Clean the sensor

   We cleaned the flame sensor carefully and checked its mounting and connection. The work focused on the failed component, leaving the working ignition and burner parts in place.

4. Run a complete heating cycle

   After cleaning, we restarted the furnace and observed the ignition sequence again. The burners remained lit, and the furnace continued into normal heating operation.

5. Check the final operation

   We verified that the furnace responded to the thermostat call and delivered heat through the existing duct system. The homeowner received an explanation of the fouled sensor and the completed repair.

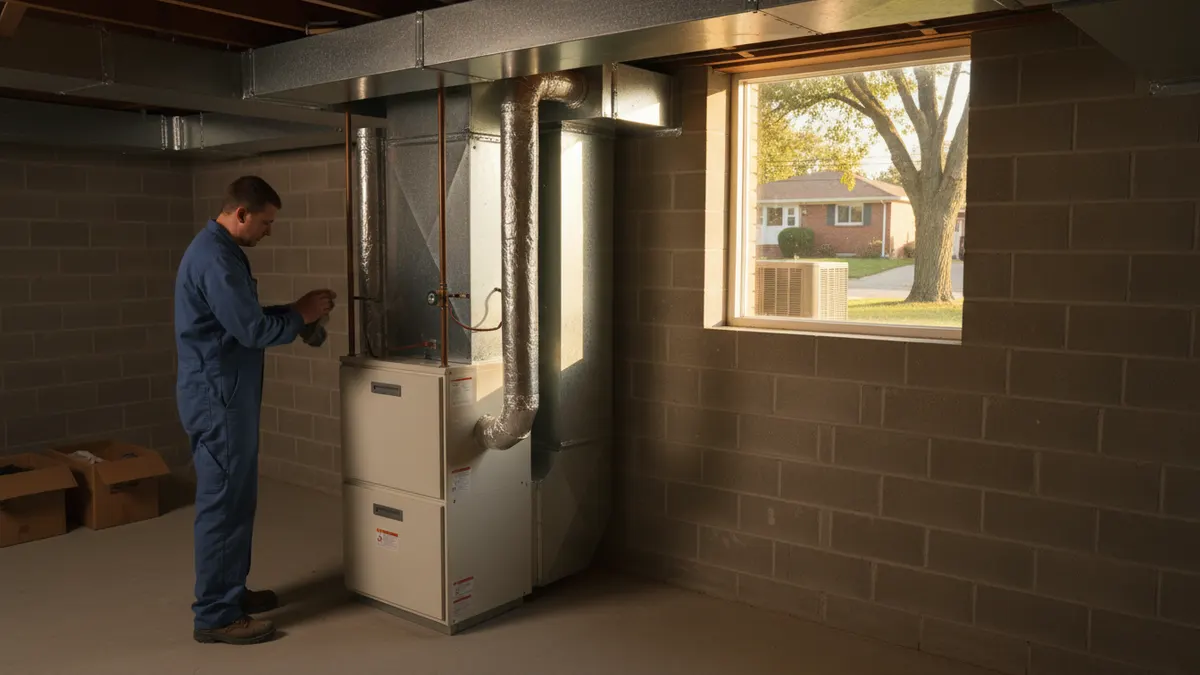

Heat Returned After the Sensor Cleaning

The furnace stayed lit after the flame sensor was cleaned and completed its heating sequence during our final check. The home received heat through its existing ductwork without replacing the furnace or other operating parts.

Because the fault was isolated to a fouled sensing component, this remained a minor repair completed in one visit. Our testing showed the furnace operating normally at the end of the appointment.

What Kept This Repair Minor

The cost was driven by diagnosis and access to the furnace, followed by cleaning and testing the flame-sensing component. Since the furnace did not need a major part or replacement, the work stayed within a minor repair tier.
